Super-low Head Room Electric Chain Hoist

Write your message here and send it to us

Product Detail

Product Tags

ELECTRIC CHAIN HOISTS WITH TROLLEY

Product Features

▲ It is typical of unique optimaI structure in shortening the distance between the machine body and the beam tracks,applicable to operations inside fairy low buildings,especially suitabIe for use in temporariIy erected plant buildings or on the sites where expansion of effectve hoispaces inside the buiIdings is required.

CHENLI PRODUCTS COVER ALL THE WORLD

world

In a lot of markets in China, Chenli products sell best comparing with the same kind of products in the dealers’ shops front (the north of Changjiang River, lifting slings and clamps sell much more better than other same kind of products); Foreign trade companies also like our products best because of the products’ good-quality and well-found specifications. The circulating orders continuously make the products in the percentage of the international market more and more high, Especially in some European countries (France, Italy, England, Spain etc)Product approval is also very high; the scale development of company, The further expansion of factory, strength proof that we will have more glorious future.

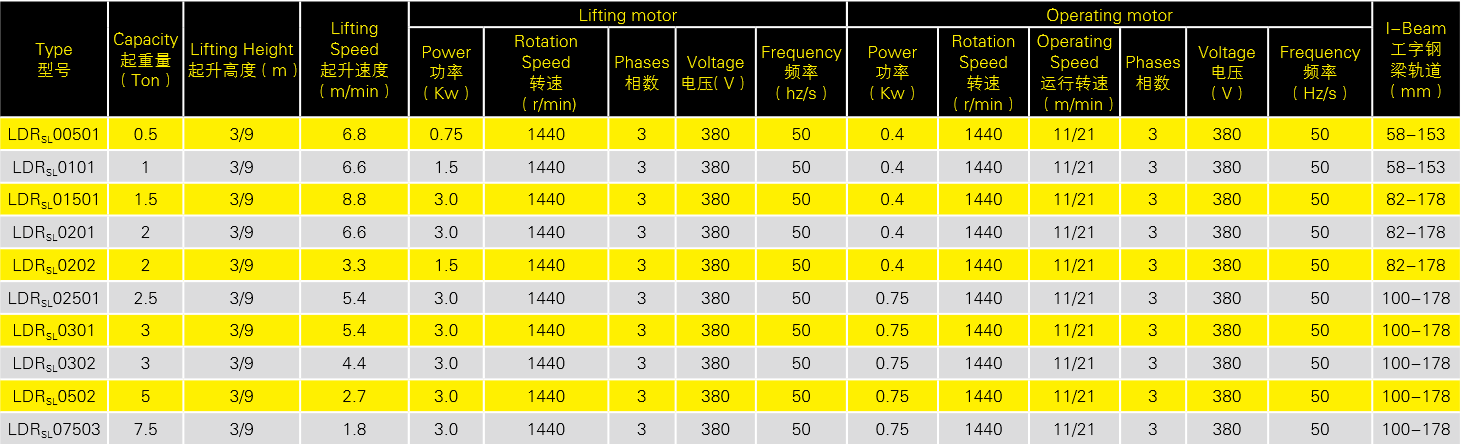

TECHNICAL PARAMETERS

CHAIN SLINGS

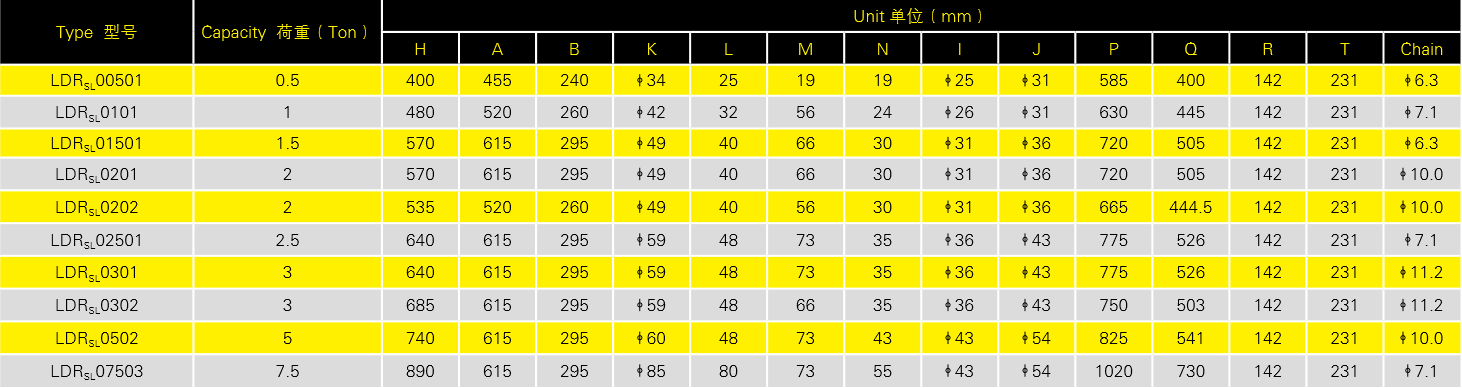

SIZE SPECIFICATION

CHAIN SLINGS

ELECTRIC CHAIN HOIST:

▲ Electric chain hoistis an ideal tool to lift heavy objects,load and unload ,maintain equipment,with reliable performance ,convenient operation,advanced structure,small volume and wide application. We are specializes in designing and manufacturing of top grade manual chain block.lever block,electric chain hoist and some other lifting equipment.
▲ new style and small lifting equipment as well as a perfect equipment for lifting, transmission.
▲  has the traits of reasonable design, advanced structure,remarkable frame, small volume,perfect appearance, big tenacity easy maintenance and durable etc.Work with low noise, overload ability, braking torque.
▲  widely used in factories,warehouse, workshop, harbour, docks, especially in raising working efficiency and improving working condition.

Features of electric chain hoist :

▲ Shell:Light aIuminum alloy shelI shalI be adopted which is Iight but hard and fit for the use in the terrible work environment with a high heat dissipation rate and all tightness design.
▲  Inverse phase sequence protecting device:lt is the speciaI electrical installation control the circuit not to work in case of wiring error in the power supply.
▲ Limit Switch:The limit switch device is installed where the weight is lifted on and off make the motor to stop automatically so as to prohibit the chains from exceeding for safety.
▲ 24V/36V device:it is used to prohibit the emergencies from occurring in case of the leakage in the switch.
▲ Side magnetic braking device:This device shalI realize the instant brake in case of the power dump.
▲ Chain bag:It shalI be Iight,handsome and durable.
▲ Chain:The chain shalI adopt the imported FEC80 ultra heat—treatabIe aIuminum alloy chain.
