CHAIN SLINGS

Write your message here and send it to us

Product Detail

Product Tags

With unique manufacturing experience, procurement process, link your quality operations

▲ Chenli high strength chains, we could produce welded chain, lifting (hoisiting)chain,mine chain, animal chain, elevator compensation chain, tyre chain and Plastic coated chain etc. nearly 300 varieties, that widely used in different purpose such as lifting, hoisting, hauling, packing, mine, garden etc.

▲ This chain slings are made up of master ring, connecting link, chains and end fittings.

▲ The length can be made according to the customers’ needs.

▲ You can choose any kind of hooks according to the lifted project.

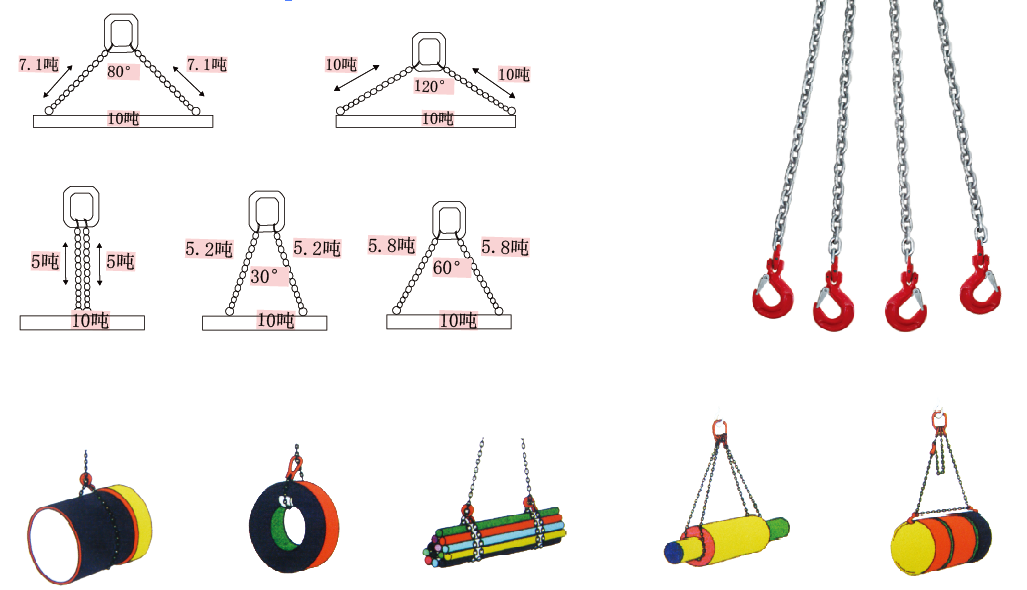

▲ hen lifting the angle won’t over 60°.

▲ Standard safely factor: 4:1. We can also produce SF: 5:1 & 6:1.

▲ Safety factor: min 4 times

▲ Product marking: G80 or required by client.We also can make the non-standard chain according to the clients’ requirements.

▲ Chenli produce kinds of chains, which are made of low-carbon alloy steel. They have the characteristic if anti-impact, high loading capacity, ductility, elongation.

▲ Chenli G80chain meet with DIN5687, DIN5688, German standard, ISO3076. We can process the surface according to the customers’ need.

▲ Chenli G80 high strength chain, breaking strength≥800MPA.

Lifting chains are used to hoist and manoeuvre items safely and efficiently. All our chains both G80 & G100 are made of high-grade steel that has been quenched and tempered for extra security.
You can choose the exact lifting chain needed to meet your specific requirements. We offer single, two, three and four leg grade chains which come in lengths ranging from one to 10 meters, while each chain comes in 6mm to 32mm thickness range. You can further customise your lifting chain by adding one of our extensive range of hooks and shortening clutches.
Both our chains and chain components are constructed of grade 80 heat-treated alloy steel that is fully tested and certified. Grade 80 steel is specifically designed for overhead lifting applications.
If you have any questions about lifting chains then please contact our expert team.

CHAIN EQUIPMENTS

EN818  LIFTING CHAIN

Chenli produce kinds of chains, which are made of low-carbon alloy steel. They have the characteristic if anti-impact, high loading capacity, ductility, elongation.

Chenli G80chain meet with DIN5687, DIN5688, German standard, ISO3076. We can process the surface according to the customers’ need.

Chenli G80 high strength chain, breaking strength≥800MPA.

CHAIN SLINGS

CHAIN SLINGSCHAIN SLINGS (2)

BELT SLINGS & WIRE ROPE SLINGS

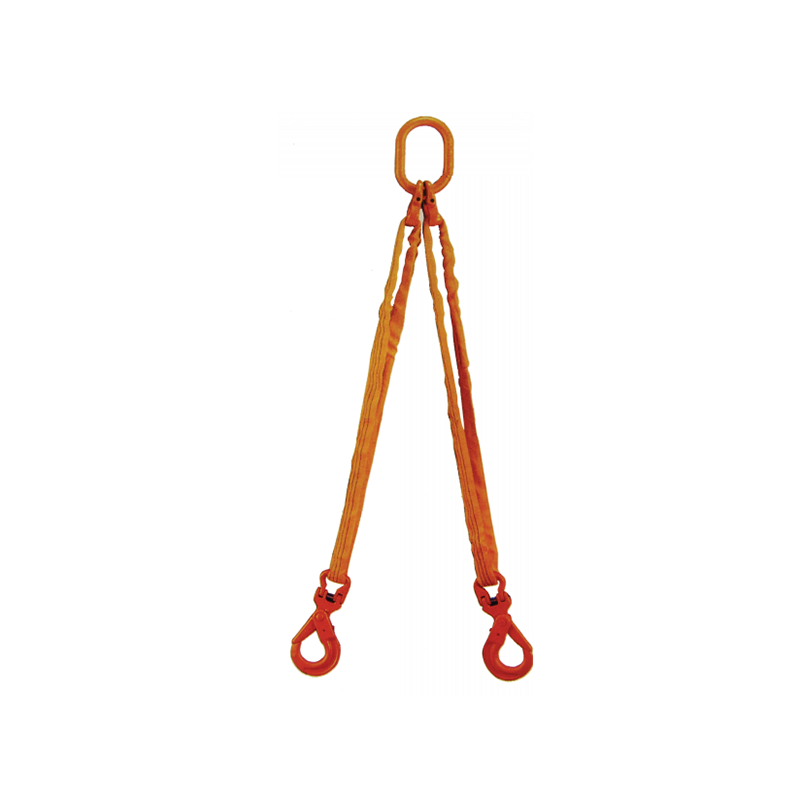

BELT SLINGS

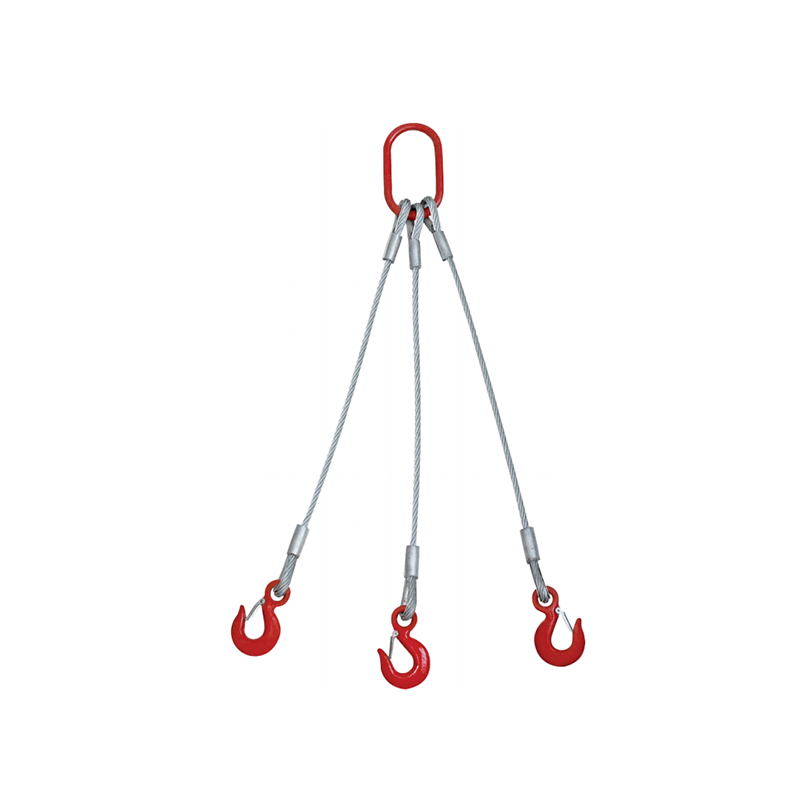

WIRE ROPE SLINGS
